28-30CPM Square can making machine square tin can production line 10-18L square can making machine

Name: 2830CPM Square can making machine square tin can production line 1018L square can making machine
Brand: Sunnran
Price: 280 USD

China 28-30CPM Square can making machine square tin can production line 10-18L square can making machine factory

Place of Origin : China

Brand Name : Sunnran

Price : $280,000.00 - $700,000.00/Pieces

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Other

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product 2019

Warranty of core components : 1 Year

Core Components : PLC, Gearbox

Condition : New

Automatic Grade : Automatic

Usage : Metal Forming Machine

Voltage : 380V 50Hz

Dimension(L*W*H) : 12000x2300x3100

Weight : 15000 KG

Warranty : 1 Year

Key Selling Points : Easy to Operate

Applicable range : Square can

Output : Max.45 CPM

Applicable can height : 150-380mm

Air pressure : Not lower than 0.6Mpa

Connection height : 1000±10mm

Contact Now

Products Description

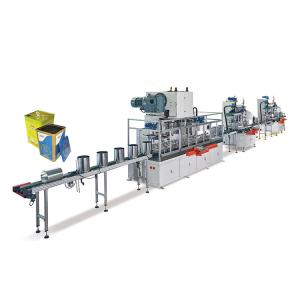

Square can making line

28-30CPM Square can making machine square tin can production line 10-18L square can making machine

This line is designed for producing square can from 18L-20L. It adopts purely mechanical cam transmission, cam delivering can, cam holding can . Cans stuck protection system of this line is to make the production more secure. The internal & external grooved pulley design assures thee flanging more uniform and fast.

Applicable range	Max. speed	Thickness	Tinplate hardness
18-20L square can	42CPM	0.25-0.35mm	T2,T2.5,T3, some ofT4

Welding line

Adopts sheet upward feeding to avoid double sheet issue. Can add additional storage platform for stocking the body blanks to enable machine continuously running and enhance productivity . With new innovated frequency inverter to make perfect welding seam. Internal and external roller coating machine is quipped with automatic lacquer feeding system to enable continuous operation. After roller coating , the lever-type mechanical brush can prevent the cylinder movement hit off the can bodies. Induction oven can be designed to linear or U-shape according to client’s workshop layout.

Automatic welder
Wire speed	Can diameter	Can height	Can material	Power capacity
9-24m/Min	200-260/260-290	180-450	Tinplate,Ni-plate,SS	26Kw
Internal & external coating machine
Coating speed	Can diameter	Coating width	Power Consumption	Power source
10-35m/min	52-300	10-14	0.6Kwh	220V
Induction oven
Conveying speed	Heater Qty.	Power	Cooling water	Air source
9-30m/min	3 x 2m/Heater	380V , 50Hz	>30L/min>400Kpa/cm2<20℃
