Machine Rectangular tin can Production Line

Name: Machine Rectangular tin can Production Line
Brand: Sunnran
Price: 90 USD

China Machine Rectangular tin can Production Line factory

Place of Origin : Guangdong, China

Brand Name : Sunnran

Price : $90,000.00 - $160,000.00/Pieces

Type : Packaging Line

Applicable Industries : Food & Beverage Factory, Paint

Showroom Location : None

Condition : New

Application : Food, Chemical

Packaging Type : CANS

Packaging Material : Tinplate

Automatic Grade : Fully-automation

Driven Type : PLC or Advanced Motion control system

Voltage : 380V

Dimension(L*W*H) : 78300x1700x2450mm

Weight : 7300 KG

Warranty : 1 Year

Key Selling Points : High quality with Competitive Price

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : PLC, Motion control system

Applicable range : Rectangular can

Output : Max.80 CPM

Can size : 1-5L

Air pressure : Not lower than 0.6Mpa

Connection height : 1000±10mm

Contact Now

Products Description

Rectangular can making line

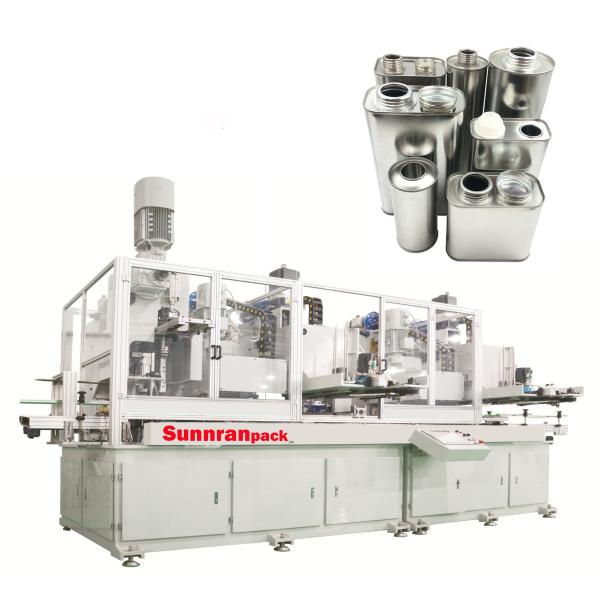

Machine Rectangular tin can Production Line

The line above has speed 28-35CPM for making 1-6L rectangular can Ultrasonic sensor equipped makes the can orientation more accurately. The adopts of dual expanding technique grants the machine better synchronism and faster speed. Integrated single head, single mold flanging and seaming can avoid can deformation effectively. The successive rotary lid delivery structure can feed the lids stably & quickly.

Model	Can sizes	Max speed	Height range	Air pressure	Power
ZD-S.	1-5L	30-35CPM	100-350mm	≥0.6Mpa	APP.25Kw

Welding line

Adopts sheet upward feeding to avoid double sheet issue. Can add additional storage platform for stocking the body blanks to enable machine continuously running and enhance productivity . With new innovated frequency inverter to make perfect welding seam. Internal and external roller coating machine is quipped with automatic lacquer feeding system to enable continuous operation. After roller coating , the lever-type mechanical brush can prevent the cylinder movement hit off the can bodies. Induction oven can be designed to linear or U-shape according to client’s workshop layout.

Automatic welder
Wire speed	Can diameter	Can height	Can material	Power capacity
6-24m/Min	99-180mm	70-330	Tinplate,Ni-plate,SS	26Kw
Internal & external coating machine
Coating speed	Can diameter	Coating width	Power Consumption	Power source
10-35m/min	52-300	10-14	0.6Kwh	220V
Induction oven
Conveying speed	Heater Qty.	Power	Cooling water	Air source
9-30m/min	3 x 2m/Heater	380V , 50Hz	>30L/min>400Kpa/cm2<20℃
