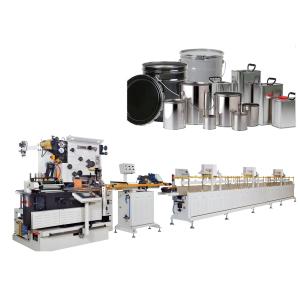

High speed Rectangular can production line

Name: High speed Rectangular can production line
Brand: Sunnran
Price: 120 USD

China High speed Rectangular can production line factory

Type : Packaging Line

Applicable Industries : Food & Beverage Factory, Paint

Showroom Location : None

Condition : New

Application : Food, Chemical

Packaging Type : Vacuum packing , wooden case

Packaging Material : Tinplate

Automatic Grade : Fully-automation

Driven Type : PLC or Advanced Motion control system

Voltage : 380V

Place of Origin : Guangdong, China

Brand Name : Sunnran

Dimension(L*W*H) : 78300x1700x2450mm

Weight : 10000 KG

Warranty : 1 Year

Key Selling Points : High quality with Competitive Price

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : PLC, Motion control system

Applicable range : Rectangular can

Output : Max.80 CPM

Can size : 1-5L

Air pressure : Not lower than 0.6Mpa

Connection height : 1000±10mm

Price : $120,000.00 - $220,000.00/Pieces

Contact Now

Products Description

Rectangular can making line

High speed Rectangular can production line

The maximum speed of the production line can reach 80 cans/min, and 60 cans/min under stable working conditions.It's adopting the dual expanding technology to have better synchronism and faster speed.
Integrated single head single mold flanging and seaming to prevent the production from deformation.
Introducing Spanish seaming top technology.
It adopts advanced techniques such as dual-mould locator, dual-mould expanding, single-mould & single-head bottom flanging and seaming, can body turnover, single-tooling & single-head top flanging and seaming.

Applicable Cans	0.25-1L rectangular cans and irregular cans (need to change tooling)
Output	80CPM
Applicable Can Height	80-240mm
Applicable diagonal	60-120mm
Connection Height	1000±10mm
Weight of Whole Line	App. 15T
Dimension of Whole Line	L7,830 X W1,700 X H2,450 mm
Voltage	Three-phase four-line 380V(can be configured according to different countries)
Powder of Whole Line	25KW

Details of the machine

Layout

Welding line

Adopts sheet upward feeding to avoid double sheet issue. Can add additional storage platform for stocking the body blanks to enable machine continuously running and enhance productivity . With new innovated frequency inverter to make perfect welding seam. Internal and external roller coating machine is quipped with automatic lacquer feeding system to enable continuous operation. After roller coating , the lever-type mechanical brush can prevent the cylinder movement hit off the can bodies. Induction oven can be designed to linear or U-shape according to client’s workshop layout.

Automatic welder
Wire speed	Can diameter	Can height	Can material	Power capacity
6-24m/Min	99-180mm	70-330	Tinplate,Ni-plate,SS	26Kw
Internal & external coating machine
Coating speed	Can diameter	Coating width	Power Consumption	Power source
10-35m/min	52-300	10-14	0.6Kwh	220V
Induction oven
Conveying speed	Heater Qty.	Power	Cooling water	Air source
9-30m/min	3 x 2m/Heater	380V , 50Hz	>30L/min>400Kpa/cm2<20℃
